QFX series data center switches

QFX Series switches secure and automate your data centre networks.

Talk to an expert
Placeholder for Juniper Networks PartnerJuniper Networks Partner

The QFX series switches secure and automate your data center networks. They build a strong underlay foundation for flexible and high-performance fabrics that improve network reliability and agility, helping to simplify the path to multicloud.

Access and Leaf
Deploy these nimble switches in your most demanding, high-performance data center environments.

Lean Spine
Build a next-generation IP fabric network with a flexible leaf or lean spine switch that meets your evolving network requirements.

Core and Spine
Achieve scalability, density, and flexibility like you’ve never seen before. Let our custom silicon switches exceed your cloud and data center demands today and every day afterward.

QFX series

Solutions

Placeholder for Juniper qfxserie 5100 1Juniper qfxserie 5100 1

QFX series data center switches

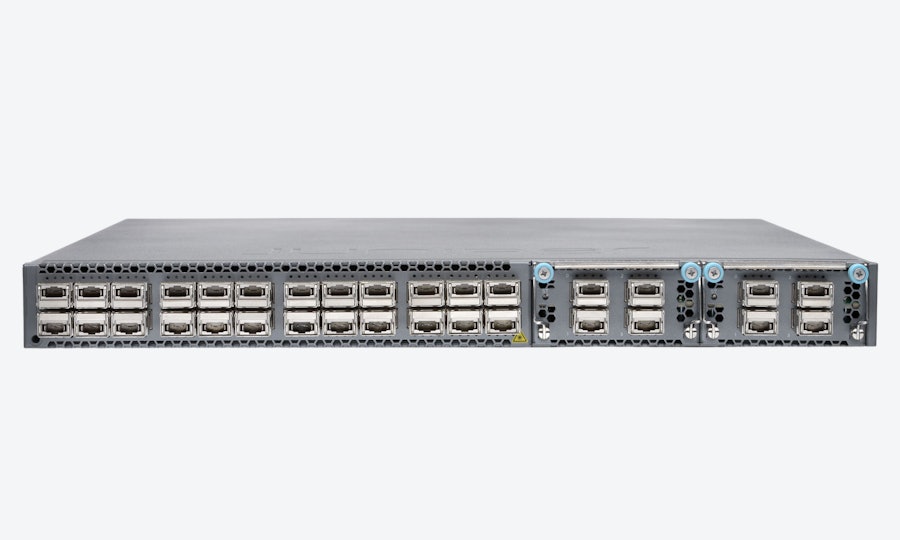

Juniper Networks QFX5100-24

  • QFX5100-24Q: 40GbE switch that supports up to 32 QSFP+ ports
  • QFX5100-24Q-AA: 40GbE switch that supports a field programmable gate array (FPGA)-based 4x40GbE expansion module with customizable logic for accelerating compute-intensive, latency-sensitive, and mission-critical application processin
  • QFX5100-96S: 10GbE switch that provides 96 dual-mode SFP and SFP+ ports and 8 QSFP+ 40GbE ports
Placeholder for Juniper qfxserie 5100 1Juniper qfxserie 5100 1

QFX series data center switches

Juniper Networks QFX5100-48

  • QFX5100-48S: 10GbE switch with 48 dual-mode small form-factor pluggable (SFP) and SFP plus (SFP+) transceiver ports and 6 quad SFP+ (QSFP+) 40GbE ports.
  • QFX5100-48T: 10GbE switch with 48 trispeed (100 Mbps/1GbE/10GbE) RJ-45 ports and 6 QSFP+ ports.
Placeholder for Juniper qfxserie 5100 1Juniper qfxserie 5100 1

QFX series data center switches

Juniper Networks QFX5110

  • QFX5110-48S: 10GbE switch with 48 SFP+ ports and 4 QSFP28 ports that can be configured as 40GbE or 100GbE ports
  • QFX5110-32Q: 40GbE switch with 32 QSFP+ ports or 20 QSFP+ ports with 4 QSFP28 ports
Placeholder for Juniper qfxserie 5120Juniper qfxserie 5120

QFX series data center switches

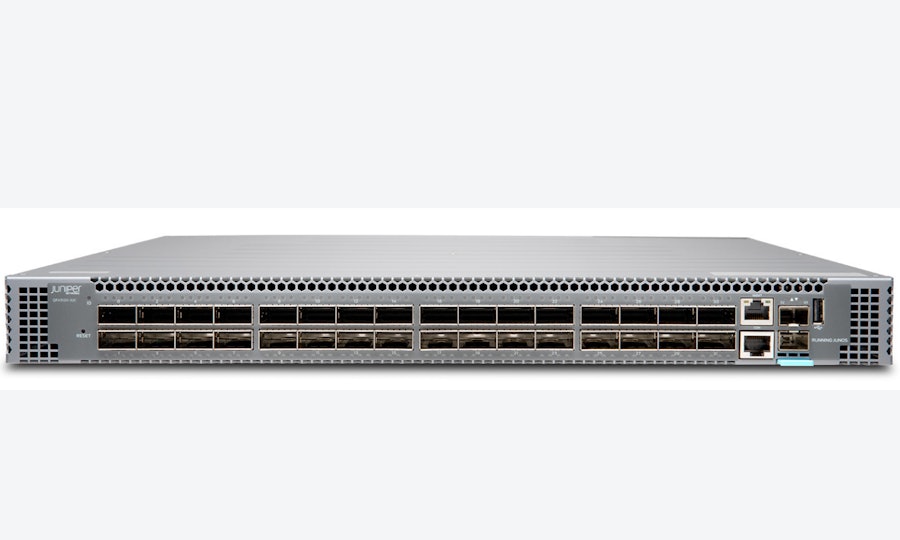

Juniper Networks QFX5120

  • QFX5120-48T: data center leaf or campus distribution switch with 48 x 1/10GbE RJ-45 and 6 x 40/100GbE ports
  • QFX5120-48Y: data center leaf or campus distribution switch with 48 x 1/10/25GbE and 8 x 40/100GbE ports
  • QFX5120-48YM: data center leaf or campus distribution switch with 48 x 1/10/25GbE and 8 x 40/100GbE ports, and MACsec with AES-256 encryption across all ports
  • QFX5120-32C: compact data center leaf/spine or campus distribution/core switch with 32 x 100GbE ports
Placeholder for Juniper qfxserie 5130Juniper qfxserie 5130

QFX series data center switches

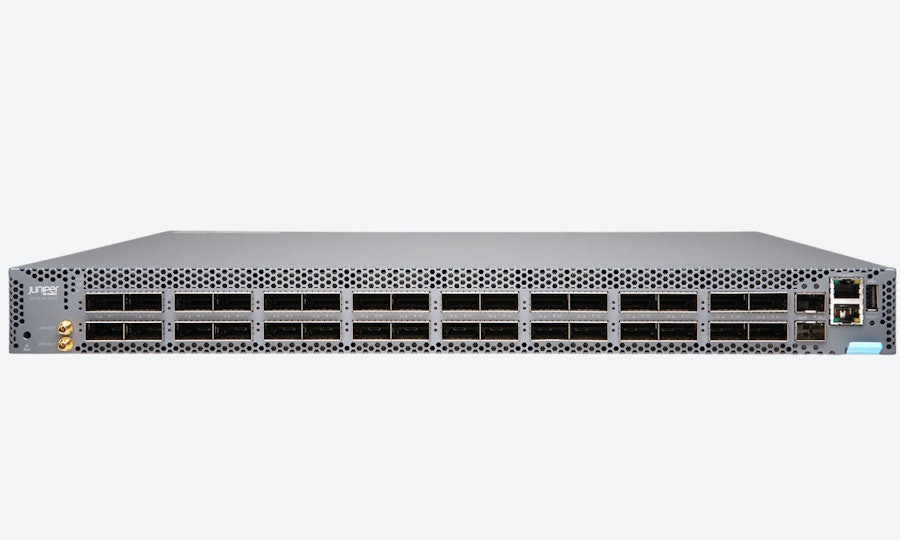

Juniper Networks QFX5130

  • QFX5130-32CD: data center leaf or spine with 32 x 400GbE and 2 x 10GbE ports
  • QFX5130 Switches offer a high-density, cost-optimized 1 U, 400GbE fixed configuration ideal for data centers where cloud services are being added. These services require higher network bandwidth per rack, along with flexibility, making the 10/25/40/100/400GbE interface options ideal for server and intrafabric connectivity
Placeholder for Juniper qfxserie 5130Juniper qfxserie 5130

QFX series data center switches

Juniper Networks QFX5200

  • QFX5200-48Y: This 1 U 48x25GbE switch has 6x100GbE uplink ports for connecting to the spine, making it an ideal choice for 25GbE access or leaf deployments with a 100GbE spine. Additionally, it’s backward compatible, as 25GbE access ports can be configured to 10GbE, and the 100GbE uplink ports can be configured to 40GbE.
  • QFX5200-32C: This 1 U 32x100GbE switch has 3.2 Tbps of throughput. Ideally suited for leaf deployments in IP fabric networks, it offers line-rate, high-density quad small form-factor pluggable (QSFP+) and QSFP28 ports. The switch supports 10GbE, 25GbE, 40GbE, 50GbE, and 100GbE connections.
Placeholder for Juniper qfxserie 5130Juniper qfxserie 5130

QFX series data center switches

Juniper Networks QFX5210

  • QFX5210-64C With this 2 U 64x100GbE high-density switch, you can eliminate tiers, reducing cost and management complexity. It’s well-suited for lean-spine deployments.
  • QFX5210-64C-S This 2 U 64x100GbE switch integrates the Software for Open Networking in the Cloud (SONiC) network operating system, enabling Juniper’s hardware to plug consistently into a unified SONiC network infrastructure. The switch also supports optional Junos containerized routing protocol daemon (cRPD) to run in Linux-based environments.
Placeholder for Juniper qfxserie 5130Juniper qfxserie 5130

QFX series data center switches

Juniper Networks QFX5220

  • QFX5220-32CD This 1 U 32x400GbE platform is optimal for spine and leaf deployments in enterprise, service provider, and cloud provider data centers.
  • QFX5220-128C This switch offers 128x100GbE ports in a 4 U form factor. With 12.8-Tbps bandwidth, it’s designed for spine and leaf deployments with a wide variety of port configurations that include speeds of 40GbE and 100GbE.
Placeholder for Juniper networks qfx5700Juniper networks qfx5700

QFX series data center switches

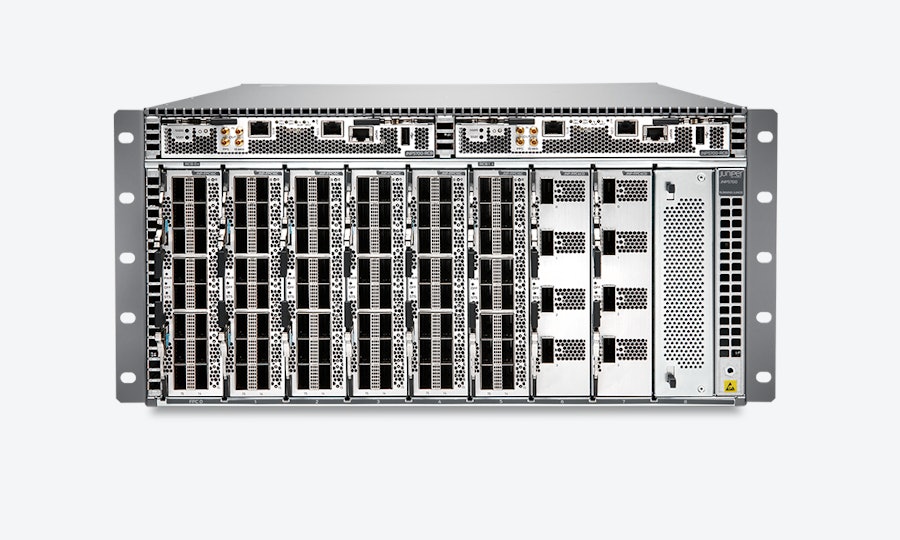

Juniper Networks QFX5700

The QFX5700 line supports very large, dense, and fast 400GbE IP fabrics based on proven Internet scale technology. With 10/25/40/50/100/200/GbE interface options, the QFX5700 is an optimal choice for spine-and-leaf deployments in enterprise, high-performance computing (HPC), service provider, and cloud provider data centers.

Placeholder for Juniper qfxserie 10002Juniper qfxserie 10002

QFX series data center switches

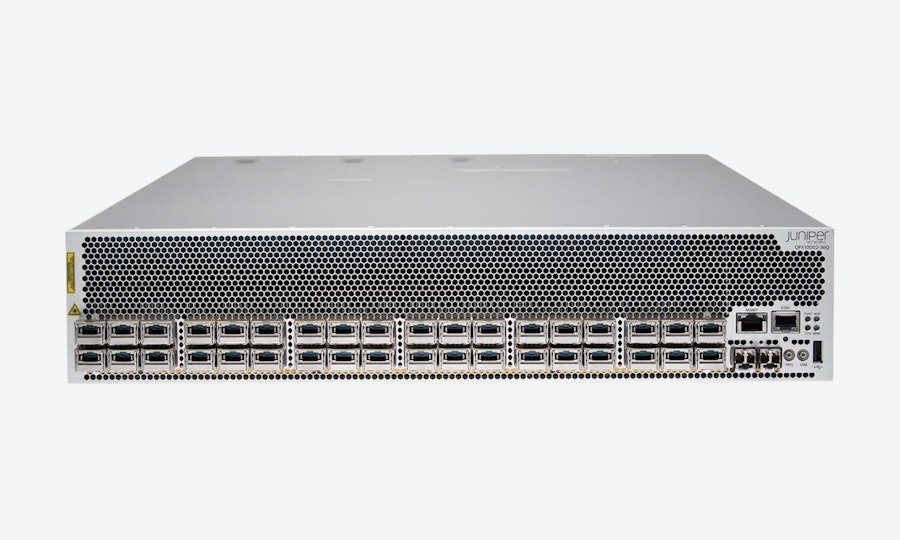

Juniper Networks QFX 10002

  • QFX10002-36Q for data center spine and core deployments: This 2 U switch provides 36x40GbE or 12x100GbE ports for throughput of up to 2.88 Tbps.
  • QFX10002-72Q for data center spine and core deployments: This 2 U switch provides 72x40GbE or 24x100GbE ports for throughput of up to 5.76 Tbps.
  • QFX10002-60C for data center spine, data center edge, and data center interconnect (DCI) deployments: This 2 U switch offers 60x100GbE ports for throughput of up to 6 Tbps.
Placeholder for Juniper qfx10008Juniper qfx10008

QFX series data center switches

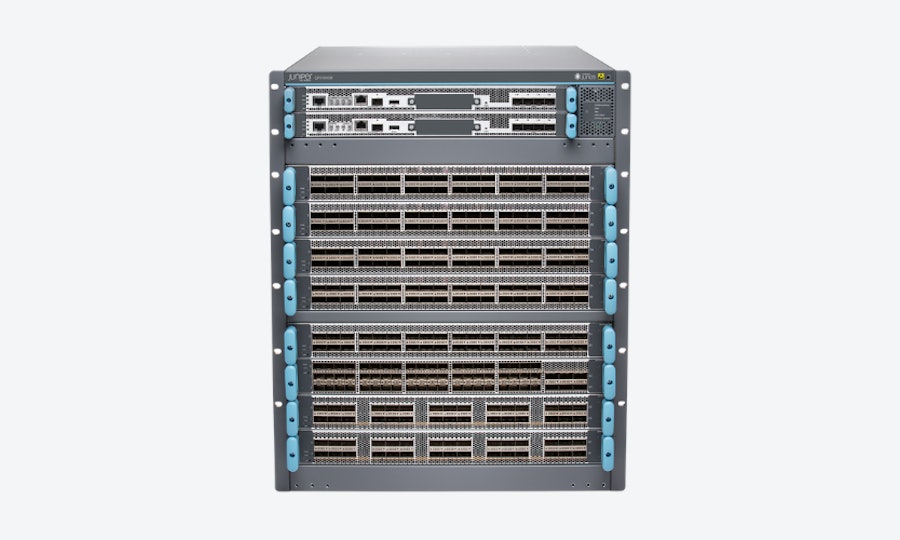

Juniper Networks QFX10008 and QFX10016

  • QFX10008: 13 U chassis that supports up to 8 line cards.
  • QFX10016: 21 U chassis that supports up to 16 line cards

Both QFX10008/16 modular chassis can accommodate any combination of the following QFX10000 Ethernet line cards:

  • QFX10000-30C-M: 30x100GbE/40GbE MACsec-enabled line card.
  • QFX10000-30C: 30x100GbE/40GbE port line card.
  • QFX10000-36Q: 36x40GbE or 12x100GbE port line card.
  • QFX10000-60S-6Q: 60x1GbE/10GbE port line card with 6 port 40GbE/2 port 100GbE.
  • QFX10000-12C-DWDM: 6x200Gbps per line card; 1.2 Tbps per line card.


QFX series

Features

High performance with low latency

With throughput of up to 6 Tbps per slot, QFX Series switches deliver sustained wire-speed switching with low latency and jitter for virtualized data center environments.

Data center fabric building blocks

QFX Series switches provide the universal building blocks for multiple data center fabric architectures, including Junos Fusion, QFabric System, Virtual Chassis, and Virtual Chassis Fabric.

Network automation

With rich automation features like Python, Chef, Puppet, and zero touch provisioning (ZTP), the QFX Series reduces errors, improves SLAs, and increases staff productivity.

High availability

Redundant fabrics, power and cooling, combined with separate control and data planes, ensure maximum system availability.

Standards-based

Standards-based bridging, routing, VMware NSX Layer 2 gateway, and Fibre Channel technology enable interoperability and easy integration.

Seamless software upgrades

The switches support In-Service Software Upgrades (ISSU), seamlessly moving to the newer software version with no downtime.
