ACX series universal metro routers
Backhaul access and aggregation routers for service providers and the enterprise.
ACX series routers simplify access and aggregation architectures by eliminating unnecessary layers and network overlays, dramatically reducing CapEx and OpEx. These MEF CE 2.0-compliant routers address a variety of use cases, including business Ethernet services, residential aggregation, small cell, mobile backhaul, and industrial field area networks. ACX series routers are environmentally hardened to ensure business continuity and network reliability.
Juniper Networks® ACX series Universal Access Routers are Juniper’s response to a shift in metro network architecture where the access and aggregation layer is extending the operational intelligence from the service provider edge to the access network. The ACX series simplifies access and aggregation architectures by eliminating unnecessary layers and network overlays, dramatically reducing CapEx and OpEx. Based on architectural simplification and cost reduction, service providers and enterprises can adopt the true universal access paradigm enabled by the ACX series. In addition to MEF CE2.0 compliance for supporting both Ethernet and IP/MPLS, the ACX series provides high capacity and scalability while delivering industry-leading performance with a range of port densities and interface types. Table 1 provides a snapshot of interfaces supported on each ACX Series model. The flexibility and upgradability (mix and match of interface types) make the ACX Series ideal for a wide range of use cases applications.
Products

ACX series universal metro routers
Juniper Networks ACX500
The ACX500 is a small form factor, hardened fanless router that delivers up to 60 Gbps throughput. The temperature-hardened ACX500 indoor model provides four copper 10/100/1000 Mbps ports and two fiber 1 Gbps ports, while the environmentally hardened ACX500-O and ACX500-O-PoE outdoor models provide three copper ports and three fiber ports. Both the ACX500 and the ACX500-O-PoE support Power over Ethernet Plus (PoE++), with a power budget of 80 watts.

ACX series universal metro routers

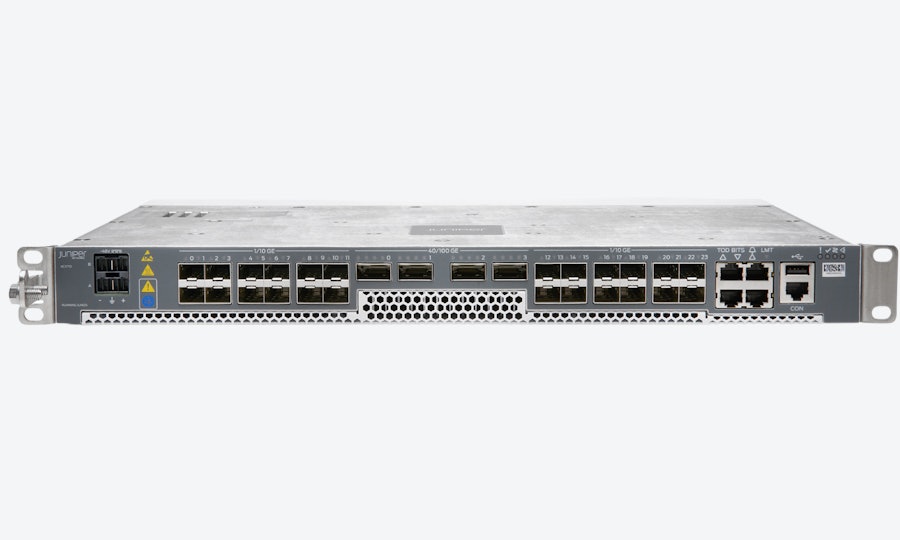

Juniper Networks ACX710
The ACX710 Universal Metro Router delivers operational and deployment flexibility, featuring high 1GbE/10GbE to 100GbE port density and advanced timing and synchronization features in a fixed, hardened, 1 U form factor designed for a variety of Metro Access and Aggregation environments. The ACX710 supports a comprehensive set of service provider, enterprise, and utility use cases, including Ethernet business services, cable distributed access architectures (DAA), residential fiber, and 5G mobile applications.

ACX series universal metro routers

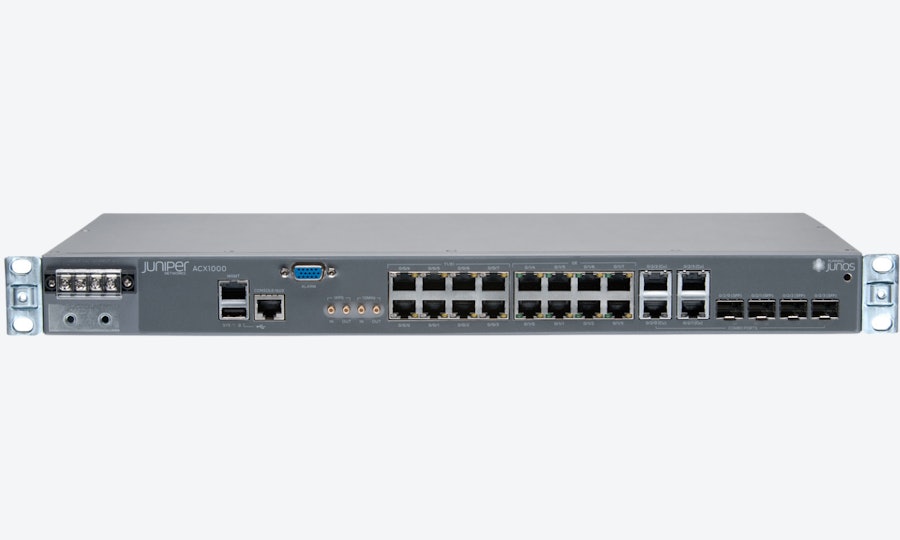

Juniper Networks ACX1000
Ideal for enterprise and service provider cabinet and tower deployments, the ACX1000 Universal Metro Router is a 1 U fanless router that delivers up to 60 Gbps through a fixed configuration of eight T1/E1 interfaces, eight copper 10/100/1000 GbE ports, and four GbE combination fiber/copper ports.

ACX series universal metro routers

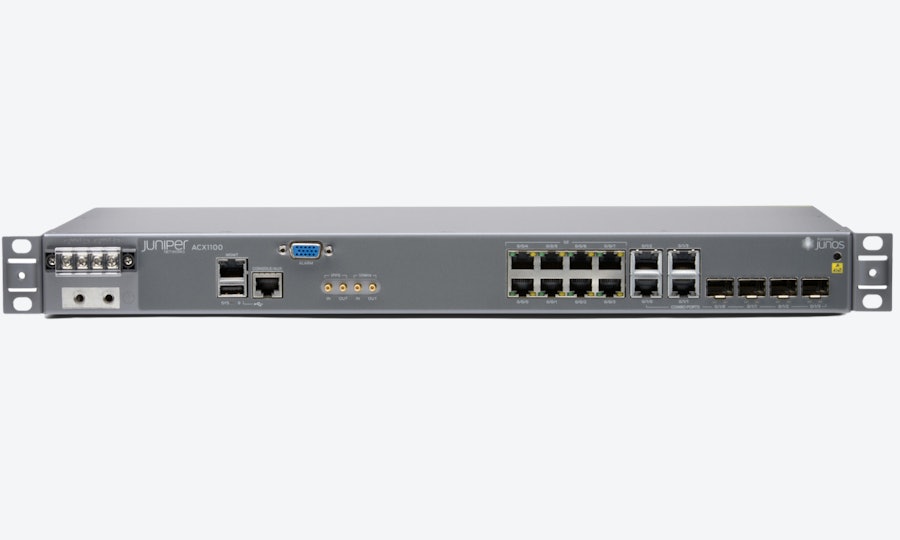

Juniper Networks ACX1100
The compact, 1 U, environmentally hardened ACX1100 Universal Metro Router is an ethernet-only access router with a fixed configuration of eight copper GbE 10/100/1000 Mbps interfaces, and four GbE copper/fiber combination ports. ACX1100 provides 60 Gbps performance, programmability, and a fanless passive cooling system that makes it ideal for external cabinet or tower installations.

ACX series universal metro routers

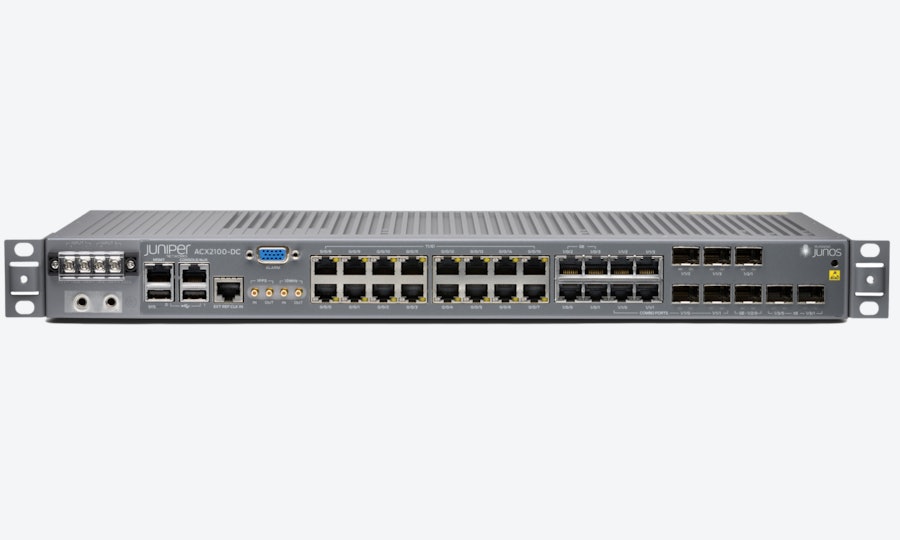

Juniper Networks ACX2100
The compact, environmentally hardened ACX2100 Universal Metro Router with fanless passive cooling has a fixed port configuration that includes 16 T1/E1 interfaces, four copper 10/100/1000 Mbps interfaces, four combination copper/fiber GbE ports, two GbE SFP ports, and two 10GbE SFP+ ports.

ACX series universal metro routers

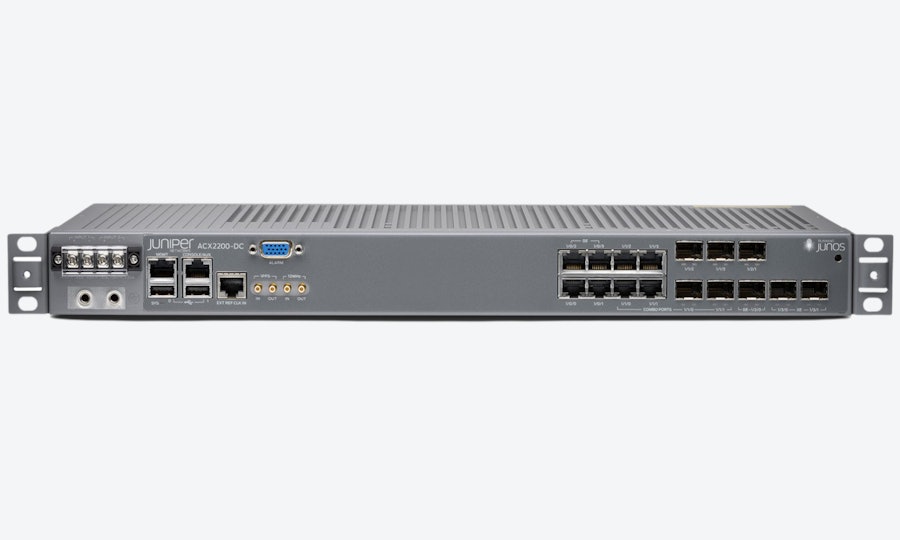

Juniper Networks ACX2200
The ACX2200 Universal Metro Router is a compact, Ethernet only, environmentally hardened router with fanless passive cooling. It has a fixed port configuration that includes four copper 10/100/1000 Mbps interfaces, four combination copper/fiber GbE ports, two GbE SFP ports, and two 10 GbE SFP+ ports, making it ideal for IP-RAN deployments.

ACX series universal metro routers
Juniper Networks ACX4000
The ACX4000 has two Modular Interface Card (MIC) slots that can house 16 T1/E1 ports, 6 GbE copper/fiber combination ports, or 4 CHOC3/STM-1 ports, creating a mobile access platform versatile enough for any deployment. Besides 2 MIC slots, the platform also provides a number of fixed ports that include 2x 10GbE, 2x GbE SFP, or 8x GbE combination (copper/fiber).

ACX series universal metro routers

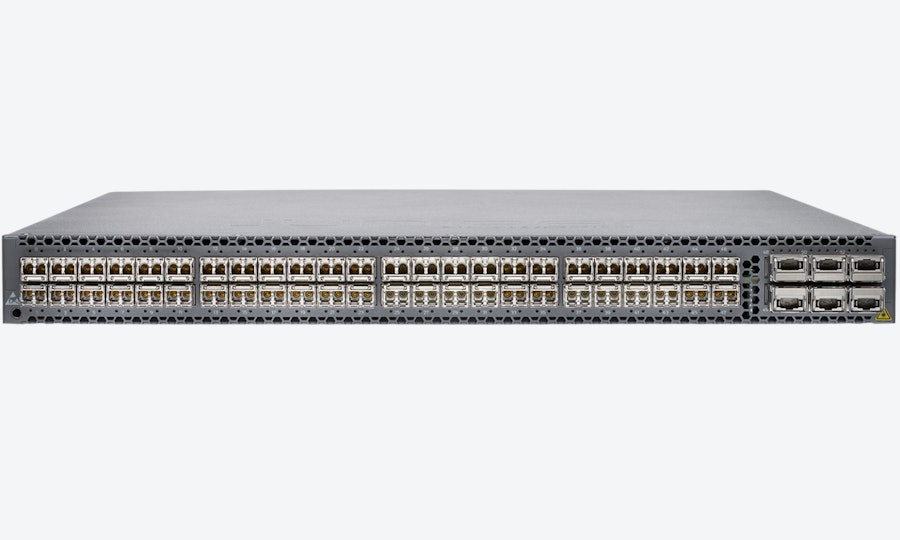

Juniper Networks ACX5000
Built to handle 1GbE/10GbE capacity and density, ACX5000 routers feature 40GbE interfaces for network-to-network (NNI) uplinks and full support of E-LINE, E-LAN, E-TREE, and E-ACCESS, as well as IP/IP VPN services. These routers support your business with high availability networking features such as unified in-service software upgrade (unified ISSU) and Junos operating system, which enable dependable and consistent delivery of mission-critical voice and video traffic.

ACX series universal metro routers

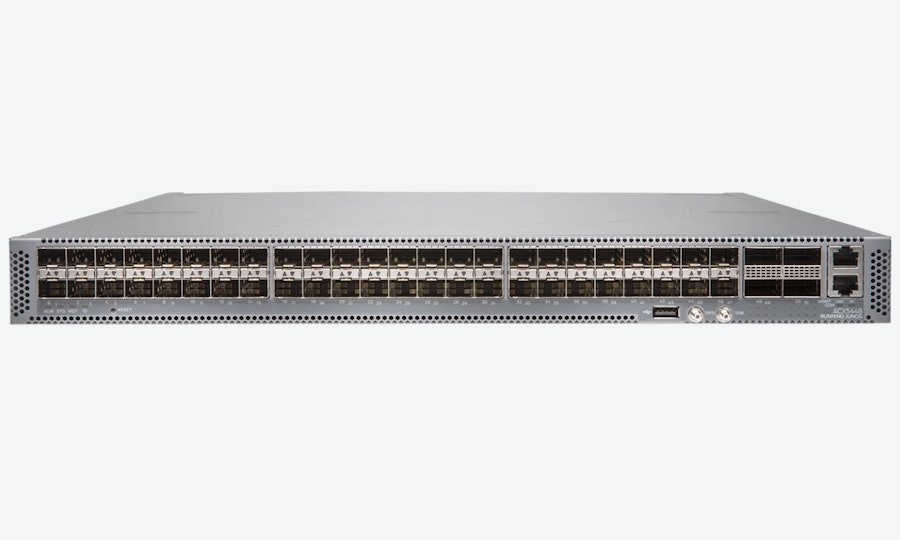

Juniper Networks ACX5400
The ACX5400 line of Universal Metro Routers is ideal for Ethernet service aggregation and packet-optical convergence. Offering GbE, 10GbE, 25GbE, and 100GbE connectivity options in a 1 U footprint, the ACX5400 line gives you the flexibility to create high-density networks with the interfaces you need to support your unique traffic demands.

ACX series universal metro routers

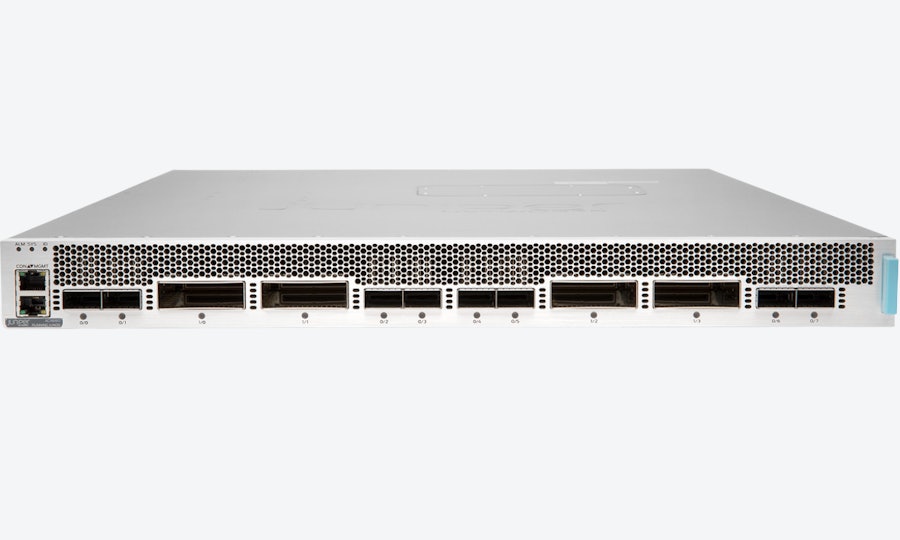

Juniper Networks ACX6000
The ACX6000 line is optimized for disaggregated and open-line architectures. It combines packet-optical convergence, 100GbE client interfaces, and 100/200 Gbps line-side interfaces to address a wide variety of use cases. Among these are business, cable Distributed Access Architectures (DAA), residential fiber, mobile backhaul, and enterprise applications.

ACX series universal metro routers

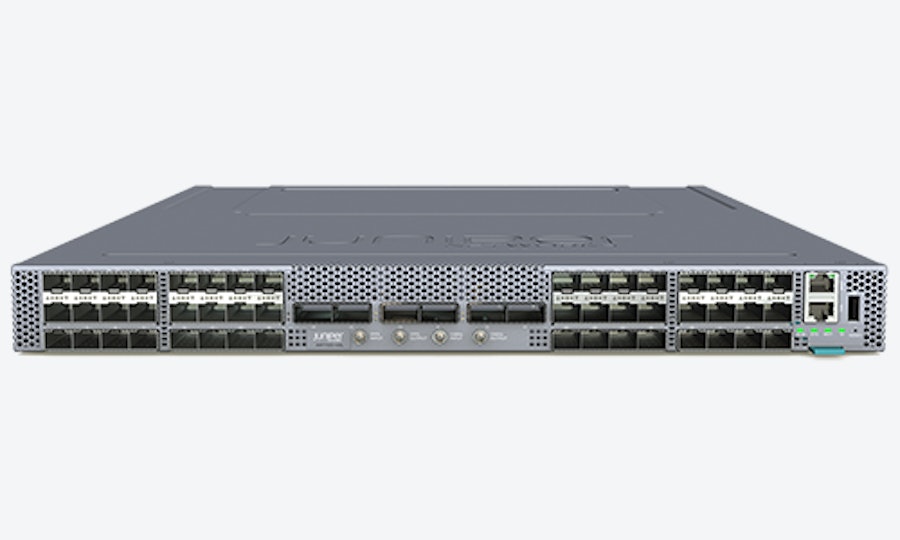

Juniper Networks ACX7100
The ACX7100 Series are high-capacity, high-density, low-latency routing and switching platform that provide up to 4.8 Tbps of throughput and 10GE to 400GE services in 1U. Ideal for metro and data center applications.
Features
ACX series product line supports MEF CE 2.0 standards for E-LINE, E-LAN, E-Tree, and E-Access services.
Proven Synchronous Ethernet and IEEE 1588-2008 clocking technologies provide the industry’s highest quality of experience and meet the strictest LTE-Advanced requirements.
Seamless MPLS minimises operational overhead, and zero touch deployment reduces operational cost.
Environmentally hardened design with passive cooling is ideal for outdoor and industrial deployment use cases.
